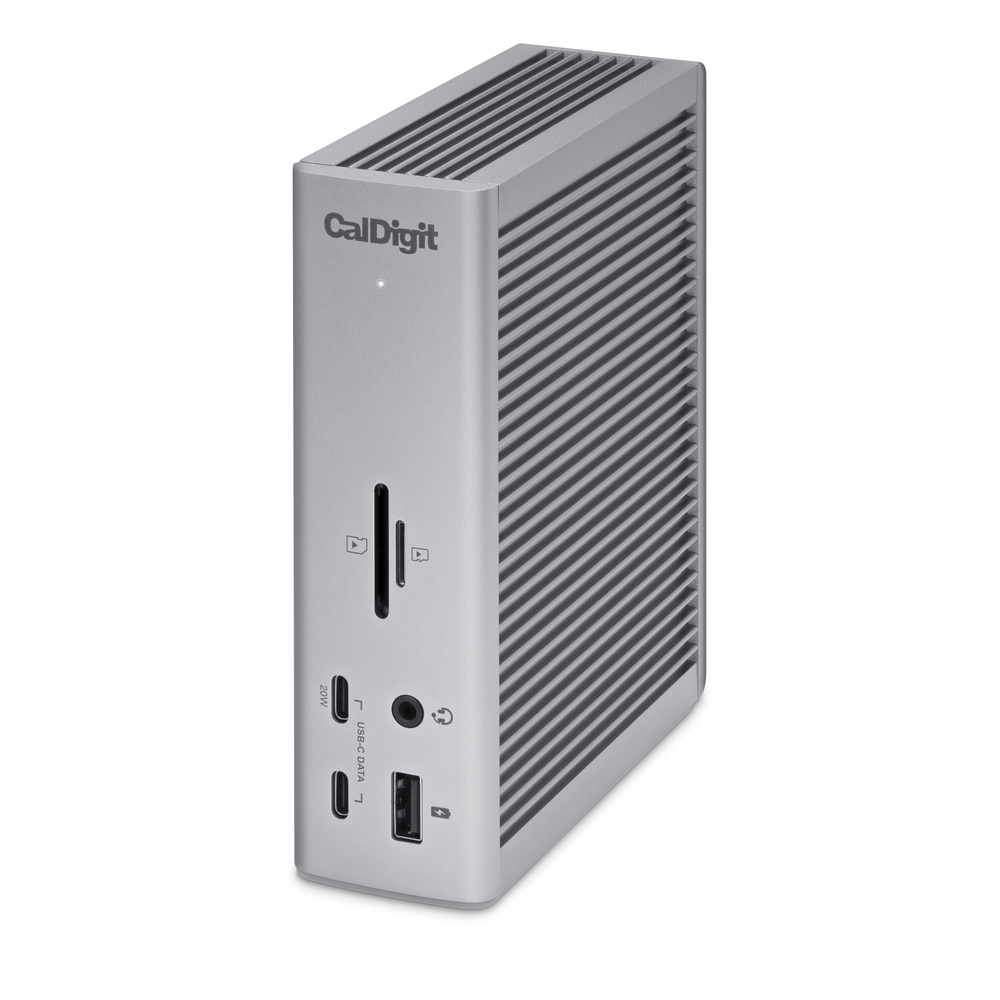

Cổng nối CalDigit TS4 Thunderbolt HR7T2LL/A

Mô tả

• Product Information


  Overview

  The CalDigit TS4 dock will connect to your Mac’s Thunderbolt 4, or Thunderbolt 3 port, and instantly provide you with an incredible 18 ports of connectivity via a single Thunderbolt cable. Take advantage of your Mac’s powerful 40Gb/s USB4/Thunderbolt port and elegantly transform your workflow with next-level connectivity. In addition to all of these ports, the TS4 will simultaneously charge your connected laptop with up to 98W of power delivery.

  8K or Dual 6K External Monitor Support


  If you are adding a single display to the TS4, you can connect monitors with up to 8K resolution for the ultimate visual experience. All resolutions below 8K are also supported such as 4K 60Hz or 6K 60Hz.* If you require two displays, the TS4 can support up to dual 6K 60Hz displays, as long as the Mac computer can support dual displays through its Thunderbolt port. **

  All resolutions below dual 6K, such as dual 4K 60Hz, are also supported.

  98W Host Charging


  When it comes to laptop charging the TS4 provides up to 98W of sustained power delivery at all times to your Mac. This is thanks to the inclusion of a 230W power supply which is more than capable of maintaining a consistent level of power. All of your attached devices, and host computer will be provided with enough power to always maintain their power demands. Power hungry devices such as tablets or other accessories will always have enough power when connected to the TS4.

  Elegant Cable Management


  The TS4 features a rear-facing host port in order to connect the dock to your Mac and provide a better cable management and a clean desktop experience.

  2.5 Gigabit Ethernet


  TS4 provides a 2.5Gb Ethernet connection that is 2.5 times faster than traditional Gigabit Ethernet, and is becoming the new standard for home and office network environment.***

  Highlights

  18 Ports of connectivity.

  Charge your laptop up to 98 watts.

  Three Thunderbolt 4 (40Gb/s) Ports.

  Supports a Single Display up to 8K or up to Dual 6K 60Hz Displays.

  Five USB-A (10Gb/s) Ports.

  Three USB-C (10Gb/s) Ports.

  One of the USB-C Ports outputs 20W for fast charging.

  One SD & one microSD 4.0 UHS-II Card Reader.

  One DisplayPort 1.4 Port.

  One 2.5 Gigabit Ethernet Port.

  What’s in the Box

  CalDigit TS4 Thunderbolt Dock

  Power adapter

  Power cord

  Thunderbolt 4 cable

  Rubber feet strips

  Tech Specs

  Cable type: Thunderbolt

  Cable Length: 32 in. / 80 cm

  Connections: 3.5mm headphone jack, Ethernet, Thunderbolt 3 (USB-C), USB-A, USB-C

  Height: 5.6 in. / 14.1 cm

  Length: 4.5 in. / 11.3 cm

  Width: 1.7 in. / 4.2 cm

  Weight: 24 oz. / 680 g

  System Requirements

  Operating System: macOS 11.4 or newer

  Manufacturer Information

  Part Number


  Mfr. Part Number: TS4

  UPC or EAN No.: 850007649005

  Warranty


  Note: Products sold through this website that do not bear the Apple brand name are serviced and supported exclusively by their manufacturers in accordance with terms and conditions packaged with the products. Apple’s Limited Warranty does not apply to products that are not Apple branded, even if packaged or sold with Apple products. Please contact the manufacturer directly for technical support and customer service.

  Warranty: Two-year limited

  Manufacturer Note


  *Maximum monitor resolutions via the TS4 will depend on your Mac/iPad/iPhone and monitor’s maximum resolution. If converting from DisplayPort to any other video connection type, such as HDMI, an Active DisplayPort to HDMI Adapter is required (sold separately).

  **External dual display support requires a Mac that supports dual displays from its Thunderbolt port, such as M1 Pro, M1 Max and M1 Ultra. The TS4 supports dual displays from either the DisplayPort connector, or one of the spare Thunderbolt 4 ports (Compatible with USB-C Video Adapters such as HDMI, VGA, or DisplayPort. Sold separately). Alternatively you can connect two USB-C or Thunderbolt monitors directly to the two spare Thunderbolt 4 ports.

  ***For full functionality the TS4 requires a 40Gb/s Thunderbolt connection to a Thunderbolt/USB4 Mac. If connected to a USB-C iPhone or iPad, the functionality will be reduced and Ethernet port will not work.

• Compatibility
